By RSEAT

A1 PRO GT White

Regular price $1,549.00 USD
Regular price Sale price $1,549.00 USD
Shipping calculated at checkout.
Wheelbase Mount: Front Mount
Seat: RSEAT GT Seat
Color: White

Delivery

Ships in 24-48 hours after the order is placed.

RSEAT PRODUCTS

 Destination
Shipping/transit time
Shipping carrier
Tracking
United States 3-5 days DHL Click Here
Canada 4-6 days DHL Click Here
Asia 4-7 days DHL Click Here
Australia 5-7 days DHL Click Here



SIMAGIC PRODUCTS

Simagic Products ships from a warehouse in France. Delivery costs may differ from those of the main RSEAT products.

VRS PRODUCTS

VRS Products ship from a warehouse in California. Delivery costs may differ from those of the main RSEAT products.


Brand: RSEAT
Availability: In stock
  • American Express
  • Apple Pay
  • Mastercard
  • PayPal
  • Visa

Regular price $1,549.00 USD
Regular price Sale price $1,549.00 USD
  • Aluminium Chassis

    Thick Walled 6063-T6 Aluminium Profiles

  • Ball Spring T-Nut

    High Quality fasteners included

  • 95% Pre-Assembled

    NEW! The A1 PRO GT Comes 95% pre-assembled from the factory. Easy 5-10 min assembly required!

  • Premium Color

    Bianco 4601 / Black Matte. Durable, highly weatherproof finish.

Pro level Cockpit

Flex-Free | Support any Wheelbase and Pedals on the market | Full range of accessories

Overview


Core Features

RSEAT A1 PRO GT chassis Is top-of- the-line sim racing cockpit designed and built to fulfill the requirements of any sim racer novice or pro. With our 14+ years of experience, we provide a smart-engineered and ready-to-go setup that will serve you for decades. A dedicated wheelbase mount option is available to mount any wheelbase, current or future. The pedals tray is designed to fit any pedals available on the market. For comfort, we include seat sliders (rails) with each chassis. Ultimate stability, rigidity, quality, and looks are guaranteed. The all-new A1 PRO GT chassis comes 95% pre-assembled from the factory in one big box. Easy 5-10 min assembly required! A service is only available here.


• The RSEAT A1 PRO GT offers Ultimate stability and rigidity with Zero-flex experience, designed to work with 35+ Nm wheelbases, Professional Load cells, and hydraulic/electric pedals.
• The chassis features quick adjustment of the wheelbase front-back position via four bolts. To slide the wheelbase forward or back will take no longer than 20 seconds, allowing you to change different steering wheels on the fly without the hassle of moving both the uprights (if there is an on-chassis monitor stand, it will be hard to do.)
• Advanced pedal tray and heel rest support. Easy to adjust the position and angle in a matter of seconds. The heel rest is included with the chassis and supports an independent position from the pedal tray so you can set up the perfect position with no limitations.
A1 PRO GT chassis features 6063-T6 grade (highest possible) aluminium extrusions. Our profiles are manufactured in the EU with the best quality possible. Wall thickness is 3.3 mm (30% more compared to our competitors). The chassis features a base frame made of 160x40mm extrusions and uprights from 120x40mm extrusions. All profiles have internal threads M8x1.25 mm.
• This top-of-the-line chassis features thick front and back steel plates, making it the most rigid chassis on the market.
• High-quality Ball Spring T-Nuts included. The most easy to install and adjust T-Nuts are provided with each chassis. The self-aligning roll-in T-Nut is a fastening option that loads either from the profile ends or side, which is helpful where the ends are inaccessible.
• The A1 PRO GT chassis include Seat sliders (rails), Seat Side mount brackets, Feet kit, Heel rest support, all tools and screws to attach and adjust your wheelbase and pedals.
• Our chassis is finished in single or two-color high-quality powder coat paint from TIGER Coatings GmbH & Co. KG Austria.
• Three Wheelbase mounting options available. Please check the supported wheelbase below.


Core Features:


NEW! All A1 PRO GT chassis come pre-assembled from the factory at 95%. The ease of assembly is the number one priority for RSEAT. Easy 5-10 min assembly required.
• Ultra durable and stable chassis with zero-flex under maximum load.
• All-way adjustable chassis including wheelbase, pedals, seat, and attachments. Seat slide front-back with Sliders/rails (included).
• Modular Design. Each module is completely independent. Upgrade with features at any time (all accessories are directly bolted onto the A1 PRO GT Chassis).
• D-BOX G5 Haptic system ready.
• User height from 127cm (4’2″) up to 210cm+ (6’10″+)
• User weight: NO Limit.
• Footprint Dimensions: L x W 1380mm x 660mm (54.3” x 26”)
• All tools and screws to attach your wheelbase, pedals are provided.
• 24×7 on-site support through ticket or live chat
3-6 Day Delivery to door with DHL Express
5-year Warranty
Made in the EU

Supported Pedals

RSEAT A1 PRO GT chassis Is designed to work with your existing or future gear. Mount any pedals as a direct bolt-on. We provide all tools and fasteners to attach and adjust the angle/position of your pedals. L-brackets for pedals with bottom mount support such as the Fanatec pedals are provided.

Supported:

  • MOZA CRP, SRP Lite, SR-P Pedals
  • Asetek Forte S Series 2 Pedals, Asetek Forte® Sim Racing 2 Pedals
  • Asetek Invicta Clutch System, Asetek Invicta S Series 2 pedals
  • Asetek Invicta Sim Racing Pedals
  • Simucube ActivePedal
  • Heusinkveld Sim Pedals Pro, Sprint, Ultimate, Ultimate +
  • Meca Cup Pedals
  • Simagic P1000, P2000 Pedals
  • Racewerk S1 PRO Hydraulic Sim Racing Pedals
  • Augury Pedals 121
  • Simworx PRO GT V3.1 LC PEDAL SET
  • VRS DirectForce Pro Throttle, Brake, Clutch Pedals
  • Asetek SimSports Forte™, Invicta™ pedals
  • BJ STEEL GT/F1 HYDRAULIC Pro Pedals
  • Venym Pedals
  • Thrustmaster T-LCM, T3PA, all other models
  • Fanatec ClubSport Pedals V1/V2/V3, V3 inverted
  • Fanatec CSL Elite Pedals
  • Fanatec CSL Elite Pedals V2
  • Fanatec CSL Pedals LC
  • Fanatec CSL Pedals
  • Logitech Pro racing Pedals, all other models.
  • And many more compatible (please check with our support staff for specific pedal compatibility that is not listed above)

Supported Wheelbases

All three advanced wheelbase mounting options feature easy forward-backward and tilt adjustment in seconds. Fanatec side mount support provides compatibility for DD1, DD1 QR2, and DD2 wheelbases that are based on M8 bolt mounting as well as 6mm bolt patterns for the new smaller side mount wheelbases such as ClubSport DD, DD+, CSL DD QR2, Gran Turismo DD Pro.

Bottom Mount Wheelbase Support

  • MOZA R5, R9, R12, R16, R21
  • Fanatec Clubsport wheel V1/2/2.5
  • Fanatec CSL, CSL-DD, CSW
  • Fanatec DD1, DD1 QR2, DD2, GT-DD PRO
  • Asetek Forte 18 nm Direct Drive, Invicta 27 nm Direct Drive
  • M10 Simagic Wheel Base
  • AccuForce V1
  • AccuForce Pro V2
  • Logitech PRO DD11 Base, Pro Racing wheel Direct Drive, G25, G27, G29, G920/G923
  • Thrustmaster All wheelbase

Fanatec Side Mount Wheelbase Support

  • Fanatec Podium Wheel Base DD1
  • Fanatec Podium Wheel Base DD1 QR2
  • Fanatec Podium Wheel Base DD2
  • Fanatec ClubSport DD
  • Fanatec ClubSport DD+
  • Fanatec CSL DD QR2 (8Nm & 5 Nm)
  • Fanatec Gran Turismo® DD Pro Wheel Base (8Nm & 5 Nm)
  • Fanatec Gran Turismo® DD Extreme
  • M10 Simagic Wheel Base

Front Mount Wheelbase Support

  • SimuCube 2 Sport, Pro, Ultimate
  • Bodnar 50 series
  • AccuForce Pro V2 Steering System
  • Simagic Alpha, Alpha Mini, Ultimate
  • MiGe 130ST (small, big)
  • Other MiGE Motor-type wheelbases
  • Lenze MCS12 series
  • VRS DirectForce Pro

Supported Seats

A1 PRO GT Side Mounting Brackets (included)

  • Fit Any Sparco, Recaro, Bride, etc.
  • Side distance between seat mounting points Min/Max  – 285 –  295 mm (11.2 – 11.6 inch)
  • Seat Width – Min/Max (at mounting points) – 390 – 520mm (15.3 – 20.5 inch)
  • Mounting Points – M8
  • Angle adjustment – Tilt 0 – 18°


A1 PRO GT Bottom Mounting Brackets (optional kit)

  • Sparco Bottom mount support 271 x 345 mm
  • Recaro Bottom mount Support 297 x 406 mm261 x 406
  • Bride, Corbeau, Cobra Bottom mount support 290 x 330 mm
  • Mounting Points – M8
  • Angle adjustment – Tilt 0 – 6°

Whats Included

A1 PRO GT Chassis (preassembled from the factory)

  • Include Seat sliders.
  • Include Feet Kit (Set of 4 Swivel Adjustable Leveling Feet and mounting brackets).
  • Include Seat-side Mounting Brackets
  • Include Advanced Pedals tray
  • Include Pedal heel resting support
  • Include Fasteners for assembly
  • Include fasteners for wheelbase and pedal mounting
  • Include Detailed Assembly and setup instructions
  • Include RSEAT GT seat (optional)

RSEAT GT Seat

RSEAT GT Seat (dedicated GT style seat)

  • Fit Users up to 44-inch Waist (pants Size. For narrower seats, please check the Seats Section on our website. We also offer Sparco seats.
  • L up to XXL in size.
  • Seat cushions: The Padding (seating area) is 2.5 inches (65 mm) Thick, which is best for long race sessions and comfort.
  • Composite shell minimum thickness 6 mm (0.24 inch).
  • Seat is finished in high wear-resistant, breathing suede fabric.
  • Weight 8 kg (17.6 lbs )

Size and Dimensions

  • A1 PRO GT with RSEAT GT Seat (no accessories attached) Length / Width
  • L 1425 mm - 1750 mm (56.1" x 68.9")
  • W 660 mm (26")
  • Uprights Height 860 mm (34")
  • Chassis main frame length 1380 mm 1380 mm (54.3")
  • Pedals Deck Width 500 mm (19.7")
  • Adjustable Feet height ± 25mm (1")
  • Main Frame Profiles 40 series T-slot Aluminium Extrusion 160x40, 3.3mm (minimum across cross-section) Wall thickness. Aluminium 6063-T6
  • Uprights Profiles 40 series T-slot Aluminium Extrusion 120x40, 3.3mm (minimum across cross-section) Wall thickness. Aluminium 6063-T6
  • RSEAT 40 series T-slot Aluminium Extrusion Profiles Thickness of diagonal bar: 3.5 mm. Wall thickness: 3.3 mm
  • HPDC L Brackets 40 x 40 x H 160 mm

Perfectly Crafted

Clean Lines | Striking looks | Well-polished edges | Quality materials | Made in the EU

Designed for Comfort

Every component of the A1 PRO GT has been carefully designed and crafted with your comfort in mind. In seconds, you can adjust the wheelbase position front-back and tilt. You can also slide the seat front-back.

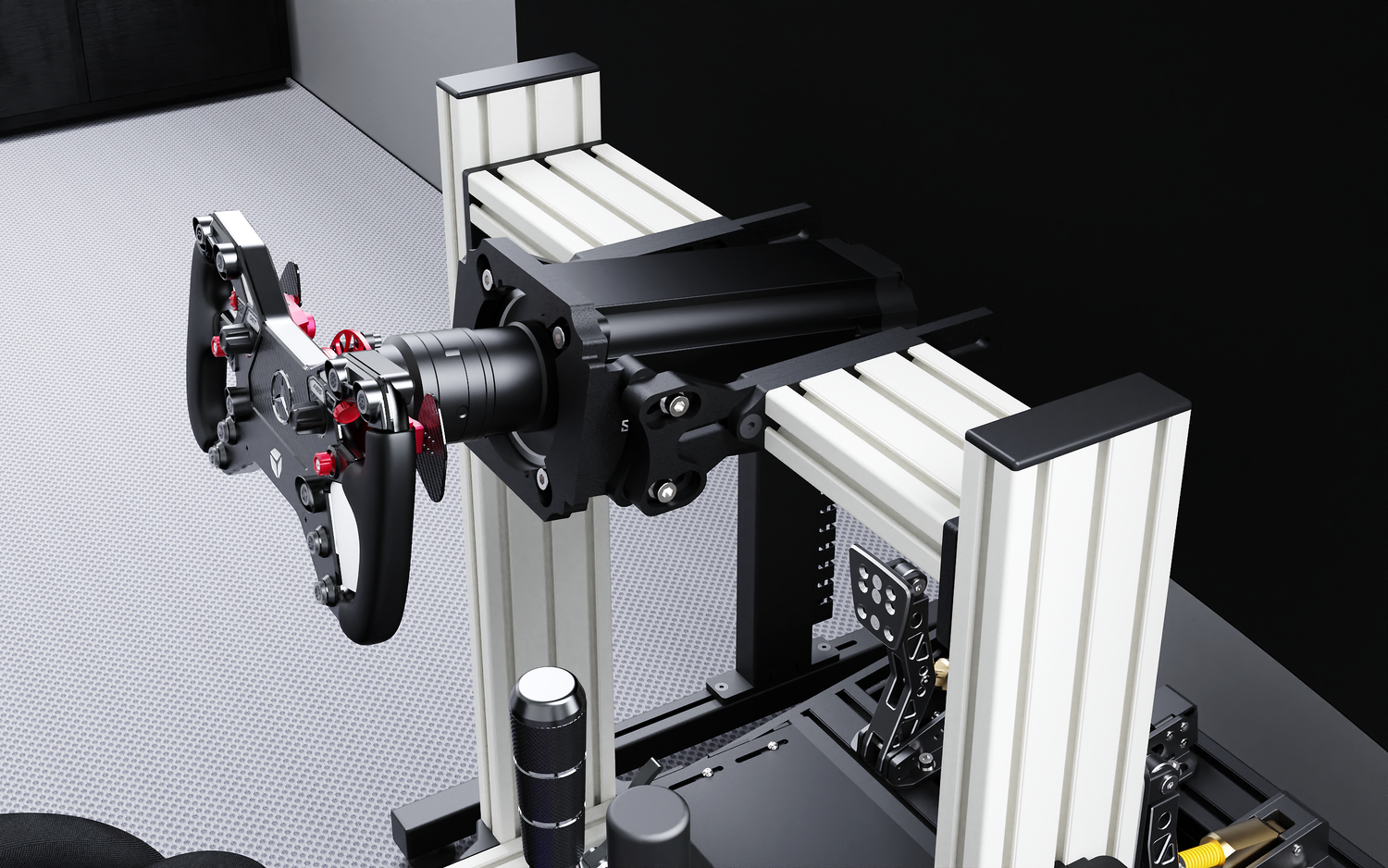

Front mount

Wheelbase support

Our dedicated Front Mount wheelbase support (mounting points on the front side of the wheelbase) provides Ultimate Stability as well as Linear, Tilt, and Height adjustment in seconds. Support any High-End front mount wheelbase on the market, including Simucube, VRS, other MiGE Motor-type wheelbases, etc.… Quick Forward-Backwards adjustment via four bolts (most cockpits require moving the whole assembly, including the on-chassis monitor stand, only to be able to adjust the wheelbase position). The assembly comprises thick Laser Cut carbon steel and a matte black powder coat finish. Zero-Flex guaranteed!

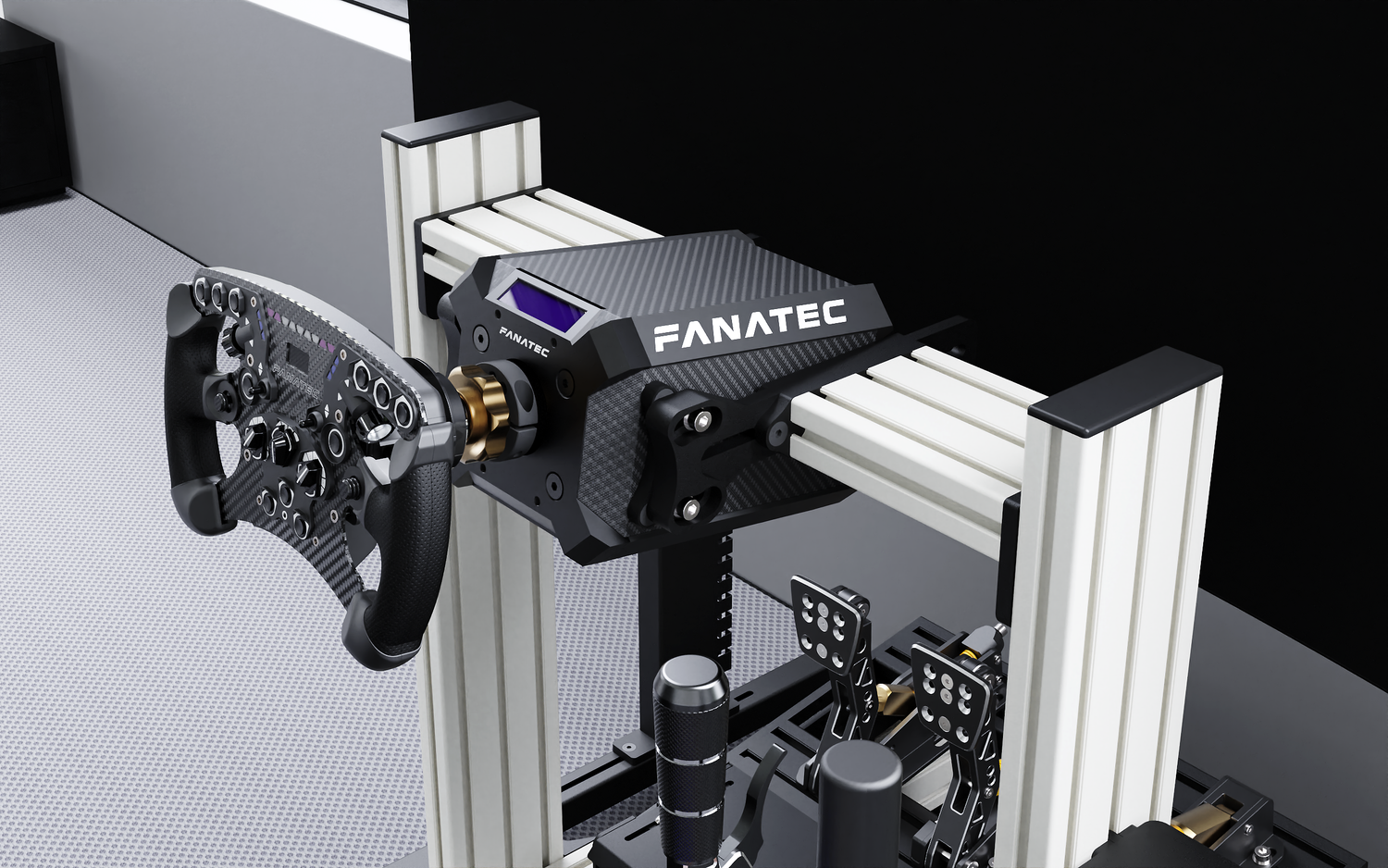

Fanatec® Side Mount

Wheelbase support

The Fanatic Side Mount Wheelbase support provides the same Adjustability and Rigidity as the Front Wheelbase Mount support, but it's designed to fit the Fanatec® wheelbases on the sides. It fits the bigger Fanatec® wheelbases, such as DD1, DD1 QR2, and DD2 with M8 fasteners, as well as the new Clubsport DD, DD+, CSL DD, Gran Turismo® DD Pro, and Extreme, which use 6mm Fasteners to mount the wheelbase to the chassis. We provide side spacers using the same wheelbase mount for both types.

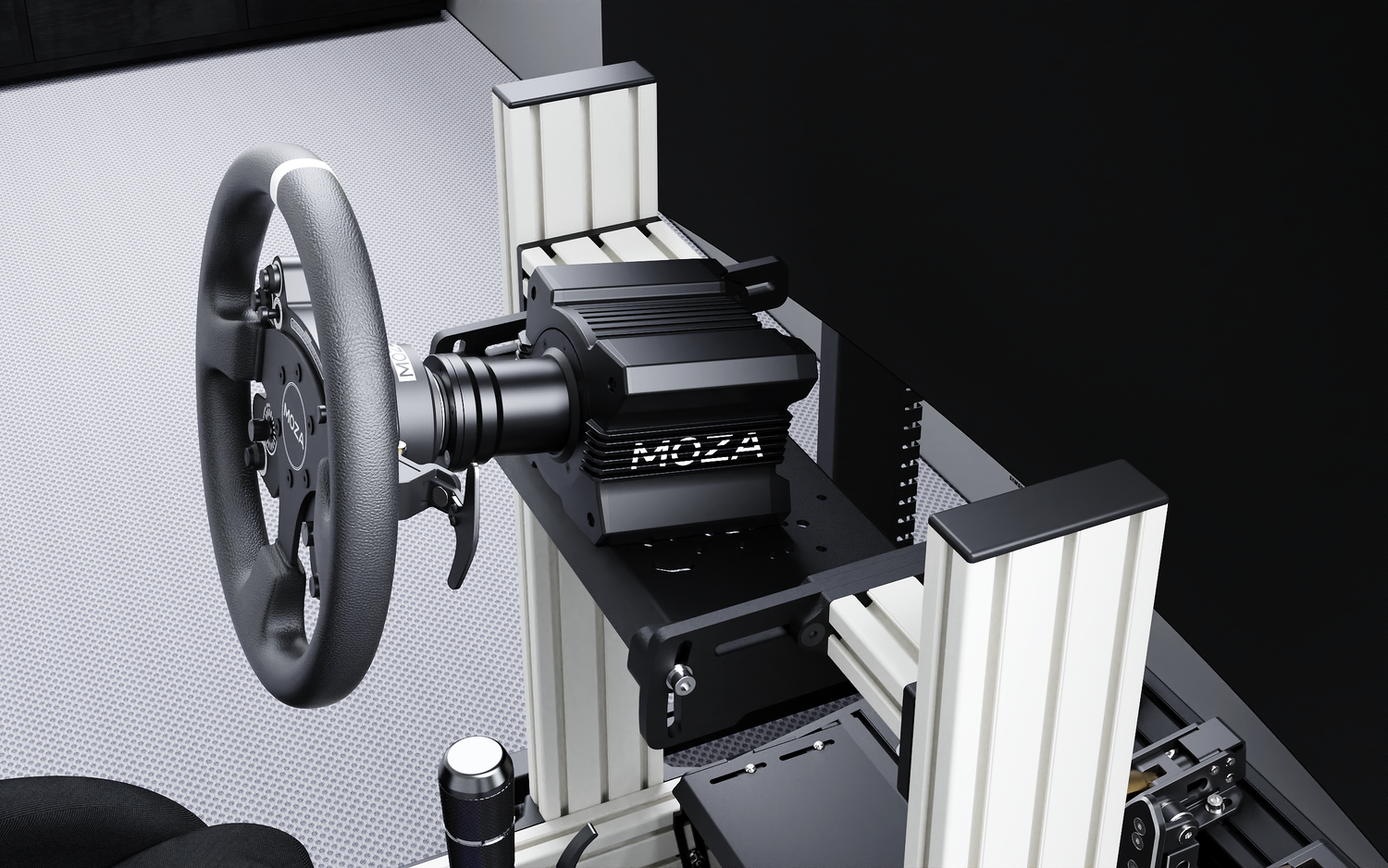

Bottom Mount

Wheelbase support

Bottom Mount Wheelbase Support is the most universal solution, and it works with any wheelbase on the market. Our new, unique design provides ultimate stability and linear, tilt, and height adjustment in seconds. Supported mounting is Pre-drilled for most wheelbases as a direct bolt-on (pre-drilled form the wheelbase manufacturer specifications) or using the provided brackets that come with the wheelbase. Supported fasteners are M6 and M7.

D-BOX Ready

D-BOX G5 4250i | Plug and Play | Preassembled from factory

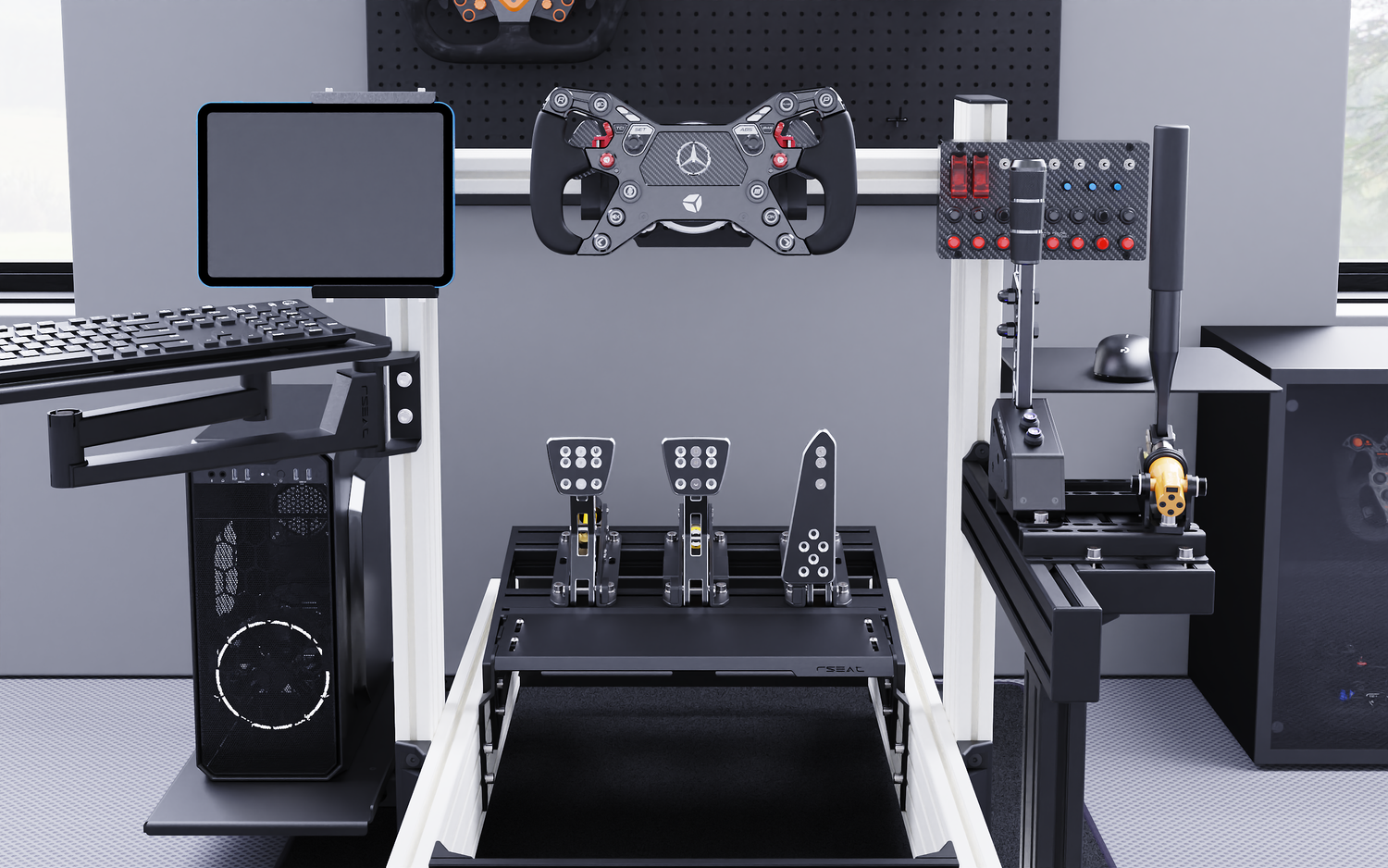

Optional Features

Full Range of Accessories | Accessories are independant and can be installed at any point of the chassis | Smart and innovative design

Specifications


Brand

Technical specs


  • Color

    Bianco 4601 , Black Matte
  • Chassis

    Aluminium 6063-T6 Chassis
  • Seat

    Composite Shell, Suede fabric
  • Feet kit

    Height Adjustable Swivel Feet with floor protection. Castors ready (M10 x 1.5 mm Threaded)
  • Wheelbase

    Adjustable on the fly front-back and tilt position in seconds. Select your mounting option at checkout.
  • Pedals tray

    Advanced all way adjustable pedals tray mount. Include adjustable heel plate support.
  • Seat sliders

    Upgraded seat sliders with zero movement when locked included. Slide front-back the seat +-100 mm ( 3.9 inch)
  • Fasteners

    Ball spring T-Slot Nuts M8. Full set of fasteners to install wheelbase, pedals, seat are included.
  • Tools

    Allen Key Sets is provided.
  • Dimensions

    Chassis Footprint dimensions L/W/H
    L 1390 mm (56.1") - 1700 mm (68.9")
    W 580 mm (Widest part 660 mm)
    H 910 mm
  • Weight

    Chassis Only: 64 kg (140 lbs)
    Chassis + RSEAT GT Seat. 71 kg (156 lbs)

Packaging


  • Box 1

    L/W/H: 140 cm x 68 cm x 50cm (chassis with seat)
    L/W/H: 140 cm x 68 cm x 25cm (chassis only)

Footprint


  • A1 PRO GT

    The required minimum footprint for the A1 PRO GT chassis and RSEAT GT seat, and no TV/monitor stands are installed.

    • L - 1800 mm (70 inch)
    • W - 900 mm (35 inch)
  • A1 PRO GT + A1-SX57 Integrated Monitor Stand

    The required minimum footprint for the A1 PRO GT chassis, RSEAT GT seat, and A1-SX57 integrated single-screen monitor stand.

    • L - 1800 mm (70 inch)
    • W - 1300 mm (51 inch)
  • A1 PRO GT + A1-TX32 Integrated Triple Monitor Stand

    The required minimum footprint for the A1 PRO GT chassis, RSEAT GT seat, and A1-TX32 integrated single-screen monitor stand. (supports up to 3 x 32-inch Monitors).

    • L - 1800 mm (70 inch)
    • W - 1800 mm (70 inch)
  • A1 PRO GT + TX32 Stand Alone Triple Monitor Stand

    The required minimum footprint for the A1 PRO GT chassis, RSEAT GT seat, and TX32 stand-alone single-screen monitor stand. (supports up to 3 x 32-inch Monitors).

    • L - 1800 mm (70 inch)
    • W - 1800 mm (70 inch)
  • A1 PRO GT + TX43 Stand Alone Triple TV / Monitor Stand

    The required minimum footprint for the A1 PRO GT chassis, RSEAT GT seat, and TX43 stand-alone single-screen monitor stand. (supports up to 3 x 43-inch TVs/Monitors).

    • L - 1800 mm (70 inch)
    • W - 2000 mm (79 inch)
  • A1 PRO GT + TX60 Stand Alone Triple TV Stand

    The required minimum footprint for the A1 PRO GT chassis, RSEAT GT seat, and TX60 stand-alone triple-screen TV/monitor stand (supports up to 3 x 60-inch TVs/Monitors).

    • L - 1800 mm (70 inch)
    • W - 3000 mm (118 inch)
  • A1 PRO GT + SX90 Stand Alone Single TV / Monitor Stand

    The required minimum footprint for the A1 PRO GT chassis, RSEAT GT seat, and SX90 stand-alone single-screen TV/monitor stand.

    • L - 1800 mm (70 inch)
    • W - 1300 mm (51 inches) (The maximum width required is the width of the screen installed)

FAQ


What can I expect ordering a rig from RSEAT?

Unbeatable quality-to-price ratio. It has better components than any similarly priced sim racing equipment. We deliver quickly using the most efficient freight carriers (DHL) available. Knowledgeable customer support via Live Chat, phone, and email.

How long it will take to get my order?

When in stock, order processing typically takes less than 24 hours (max. 48 hours). Delivery to US / Canada / Global takes 3-6 days to door. Delivery details (tracking information) will be provided by email once shipped.

Do I need to pay any extra tax?

The price you see at checkout is the total amount you'll need to pay. Please refer to our shipping policy. Rest assured, RSEAT will not charge extra taxes, duties, or fees for customers in the USA.

How long is the warranty?

We provide a 5-year full warranty on all RSEAT products. Coverage under this limited warranty begins from the date the original purchase is delivered and is only applicable to the original purchaser of the product. We provide additional out-of-warranty support for all our products. Replacement parts are shipped within 48 hours.

How to choose a seat?

If you are looking for long-term comfort and thick seat padding, choose our RSEAT GT Seat. Composite racing bucket seats tend to be tight and not as comfortable as regular car seats. Our RSEAT GT seat fits Users from size L up to XXL and features 2.5-inch thick seat padding for ultimate comfort in long races. Any racing seat fits on an A1 PRO GT Chassis. Choose the seat per the size chart for the specific seat on our website.

Can i use my own seat and purchase the chassis only?

Yes, the A1 PRO GT chassis will fit your current seat. We provide all the tools, fasteners, and sliders to attach and adjust your seat on the chassis. If your seat requires bottom mounting brackets, purchase them separately on our website.

Are the seat mounting brackets, fasteners and sliders Included?

Yes, A1 PRO GT includes the seat mounting brackets (side mount support for bucket seats such as RSEAT GT Seat, all Sparco Seats, Recaro, Bride, etc.), seat mounting fasteners to mount the seat to the brackets, a pair of seat sliders (rails), and an adjustment bar with the required mounting fasteners (already installed on the chassis from the factory).

Feet kit is included?

Yes, the A1 PRO GT includes a feet kit for all four corners. The kit consists of mounting brackets (installed from the factory to the main chassis) and 4 x adjustable-in-height Self-leveling feet with silicone floor protection.

Does A1 PRO GT support caster wheels and what type?

Yes, A1 PRO supports caster wheels that are installed in place of the provided feet kit. They are Threaded Stem M10mm Casters. The caster wheels must be medium to heavy-duty with a metal shell (light-duty plastic casters are not recommended). Use medium or heavy-duty caster wheels, one per corner. Recommended castors are 10 mm Threaded Stem swivel Casters with brakes.

What is the max. user weight the A1 PRO GT cockpit can handle?

There is no user weight limit for the A1 PRO GT cockpit.

What is difference between A1 PRO GT and A1 PRO Formula cockpits?

The A1 PRO GT is a universal cockpit that allows you to race in a standard seating position. A1 PRO Formula seat is tilted back nearly 30-35 degrees, meaning that the pedal box is higher than your hips. The specific seating position applies to all open-wheel race cars and LMP1 series. If you are looking for a universal rig that will work for any race, go with A1 PRO GT; for dedicated fans of Formula races, choose the A1 PRO Formula cockpit. Another difference is how users get in and out of the cockpit, whereas the A1 PRO GT chassis has a clear advantage due to the standard seating position.

Can i upgrade A1 PRO GT to A1 PRO Formula later on?

This option is no longer available due to the specific design of the A1 PRO Formula. Both cockpits share only 10% common components, making upgrading inefficient.

I plan to replace my current wheelbase in the upcoming future. Is it possible to change the wheelbase support?

Yes, we offer dedicated wheelbase mount support, including front mount, Fanatec side mount, and bottom mount support, in the desired color as a separate kit.

How to choose Monitor stand?

RSEAT Monitor stands are divided into two groups: integrated monitor stands and stand-alone TV / Monitor stands.

Integrated monitor stands are mounted directly on the A1 PRO GT Chassis, whereas stand-alone ones are independent of the chassis. Our A1-SX57 single-screen integrated monitor stand supports any monitor from 32 inches up to 57 inches, including the Samsung Odyssey Neo G9 57 inches. The integrated stands are the best option for single or triple screens, and no haptic (motion) system is installed. Setups with the A1 GT G5 D-BOX Upgrade kit require stand-alone monitor stands, as extensive vibration and motion will damage the monitor. The same goes for the triple-screen integrated A1-TX32 that supports up to 3x32-inch monitors. Both A1-SX57 and A1-TX32 provide full control of the screen(s) position, including forward-backward, up, down, and tilt in any direction.

Stand-alone TV / Monitor stands are universal and will work with any screen(s) up to triple 60-inch TVs. Is the haptic system installed or not? When selecting your TV / Monitor stand, first check the VESA Support compatibility (make sure VESA support is present) of your TV / Monitor that will be installed. At checkout, select the VESA support required for your hardware. Also, check the required footprint (check the chart Footprint above). Another good compatibility of our stand-alone TV / Monitor stands is installing the A1 PC tray kit directly on the stand. Also featured is cable management (on the back of the stand's leg support). This way, perfect cable management is provided for safety.
